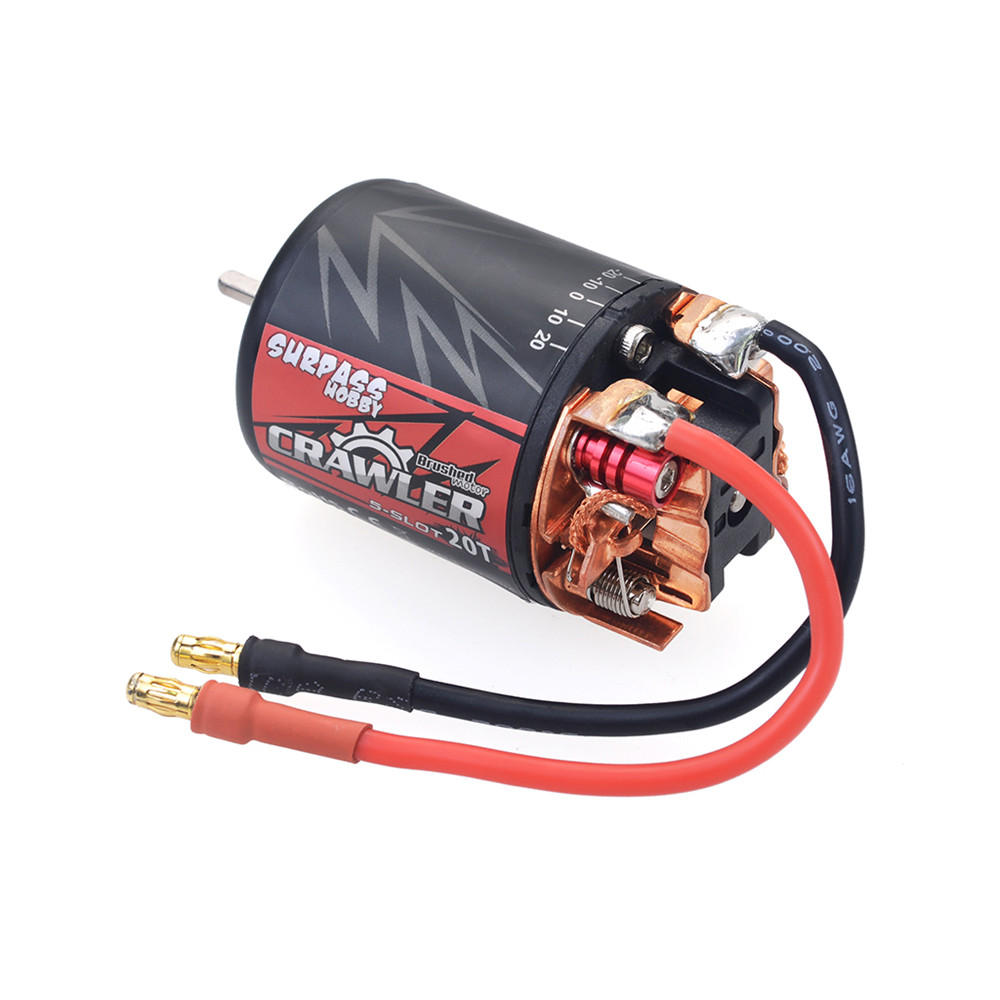

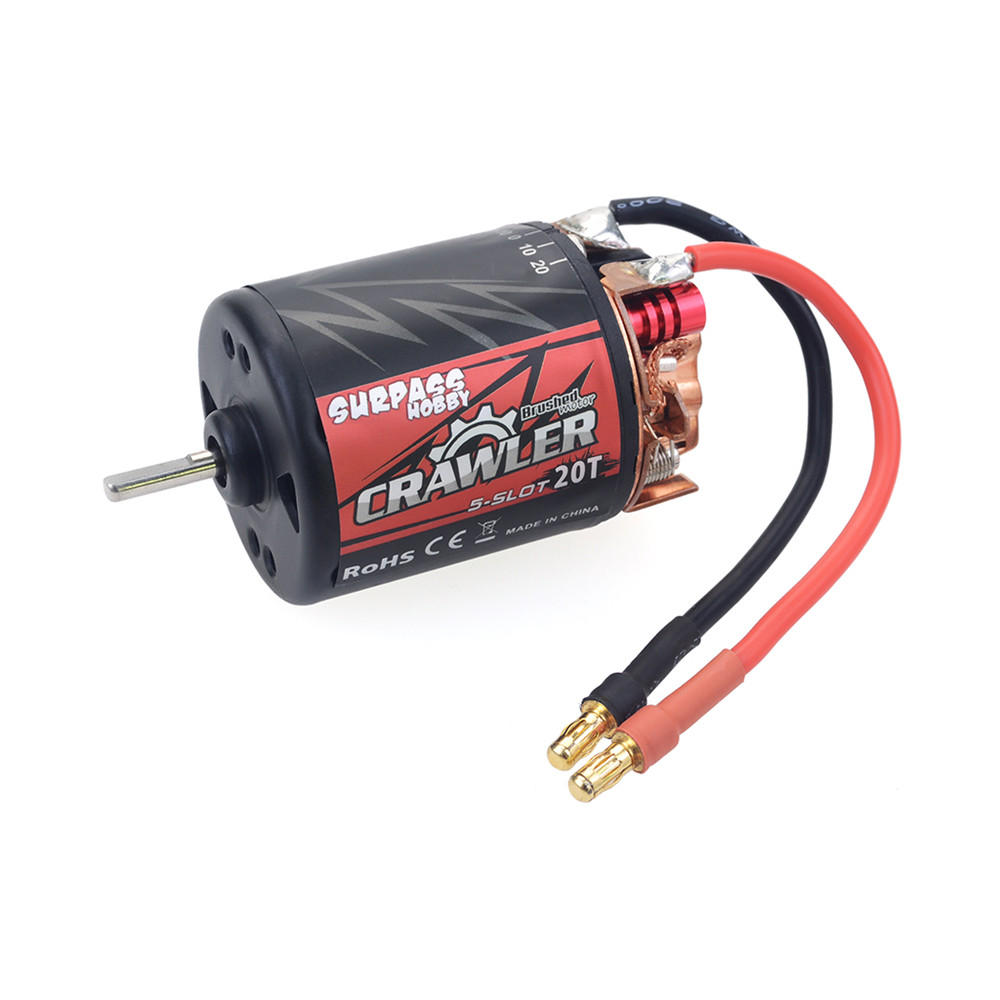

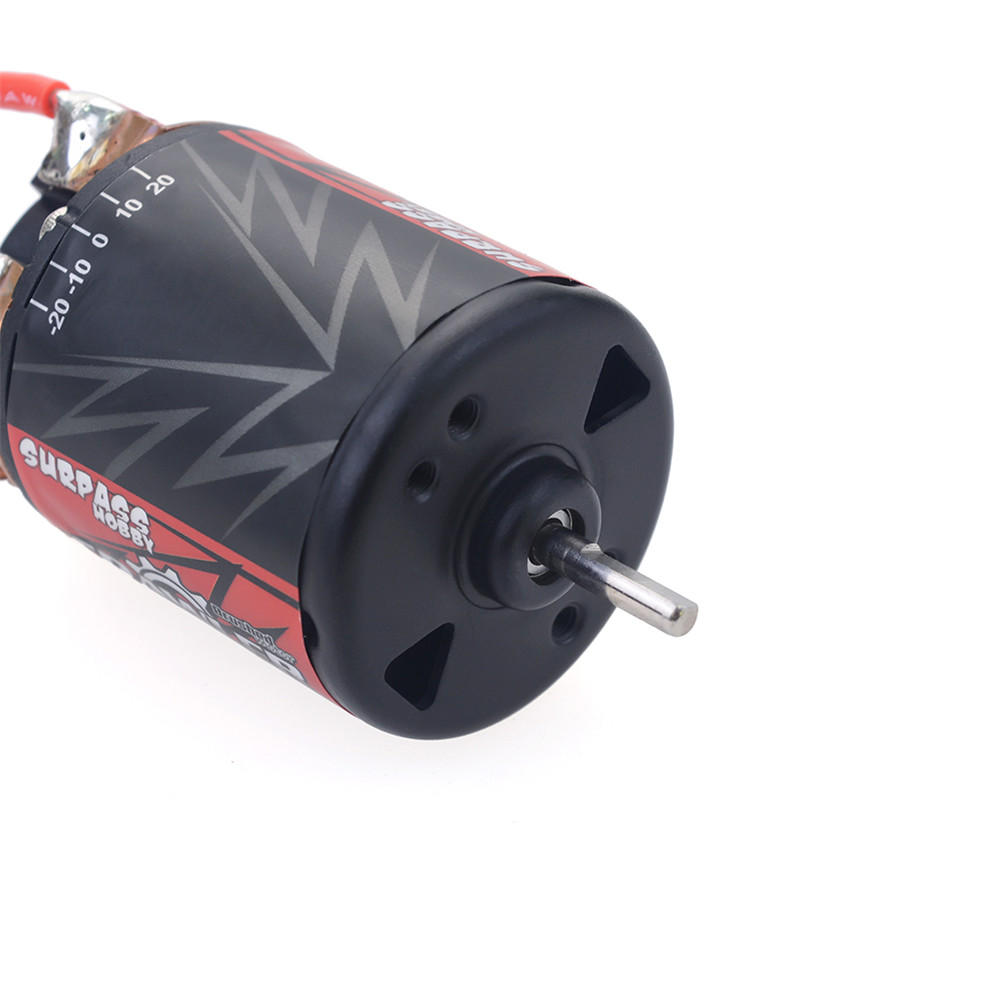

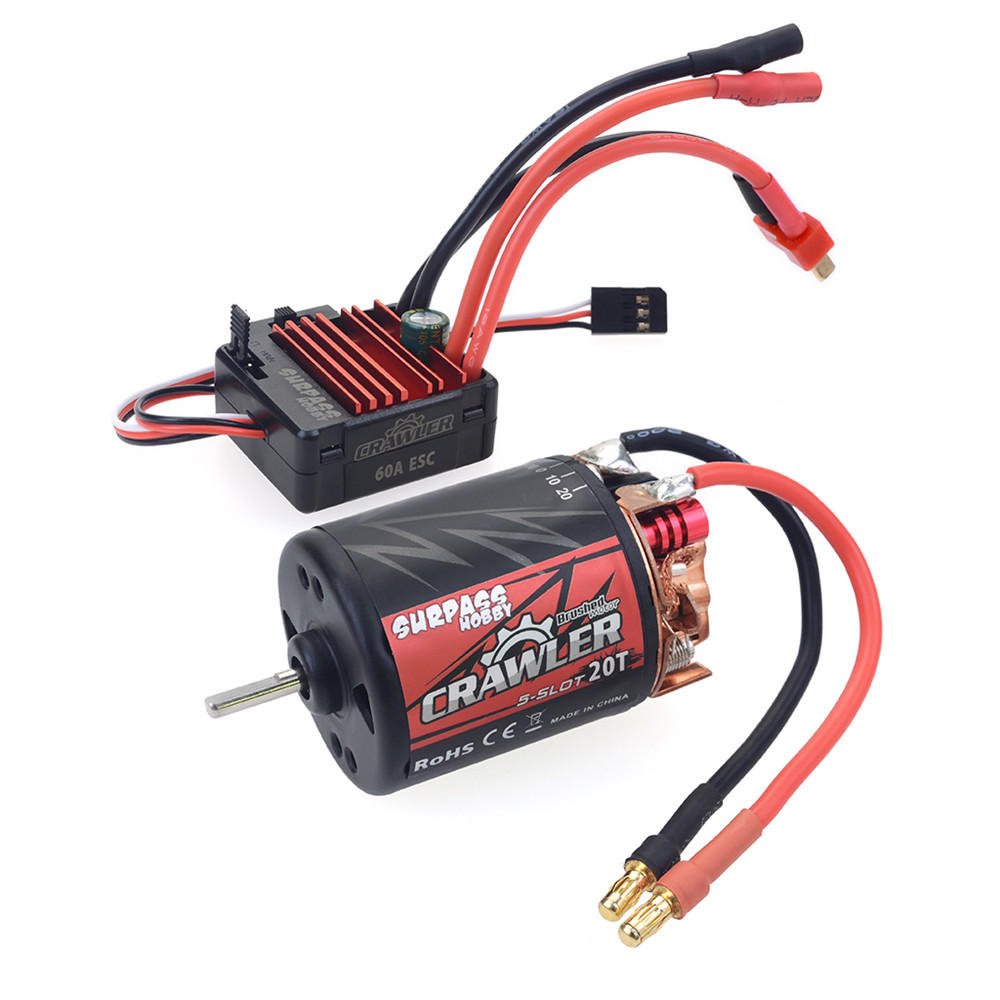

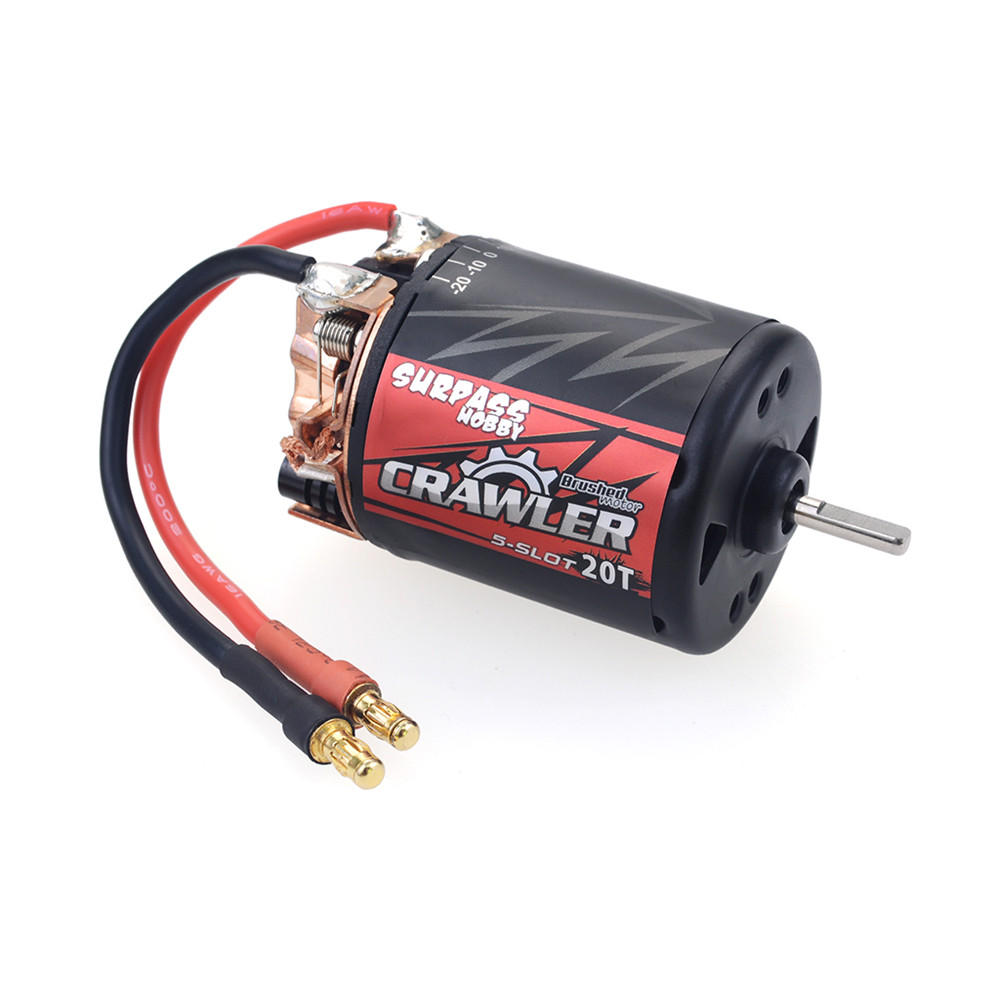

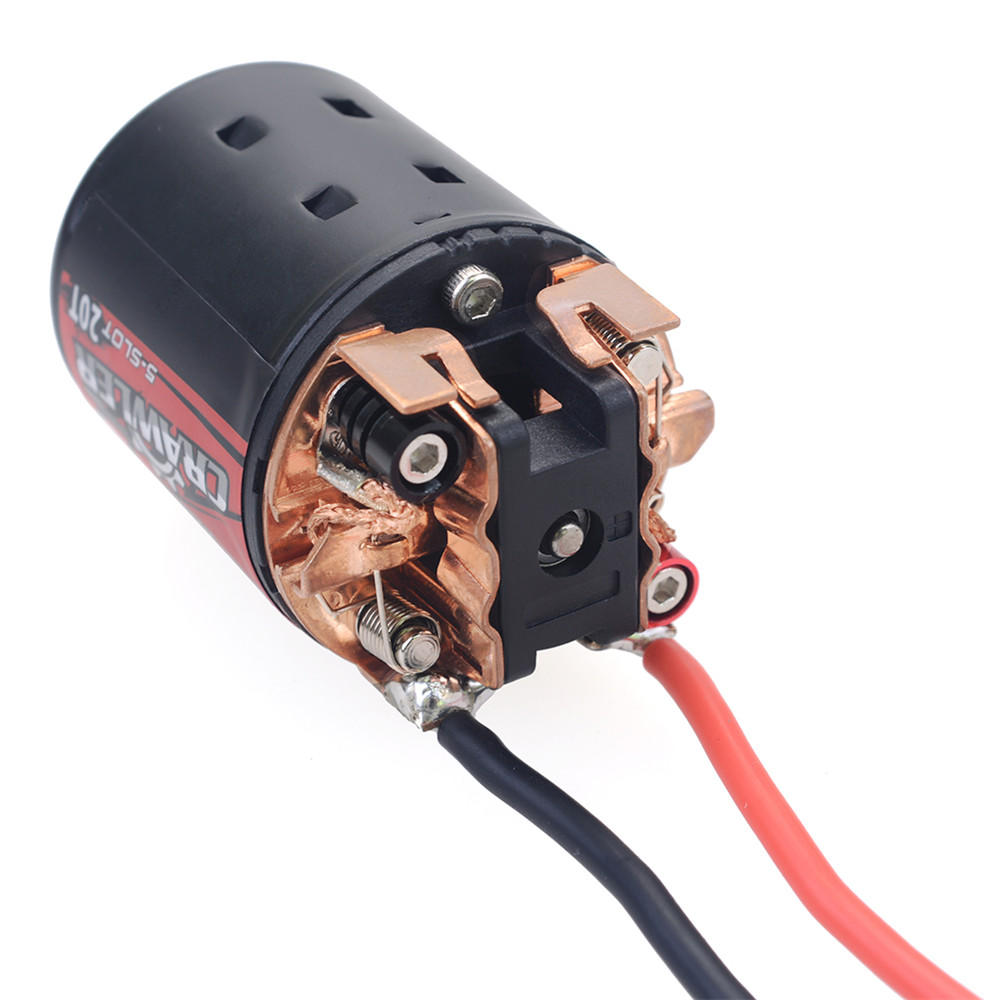

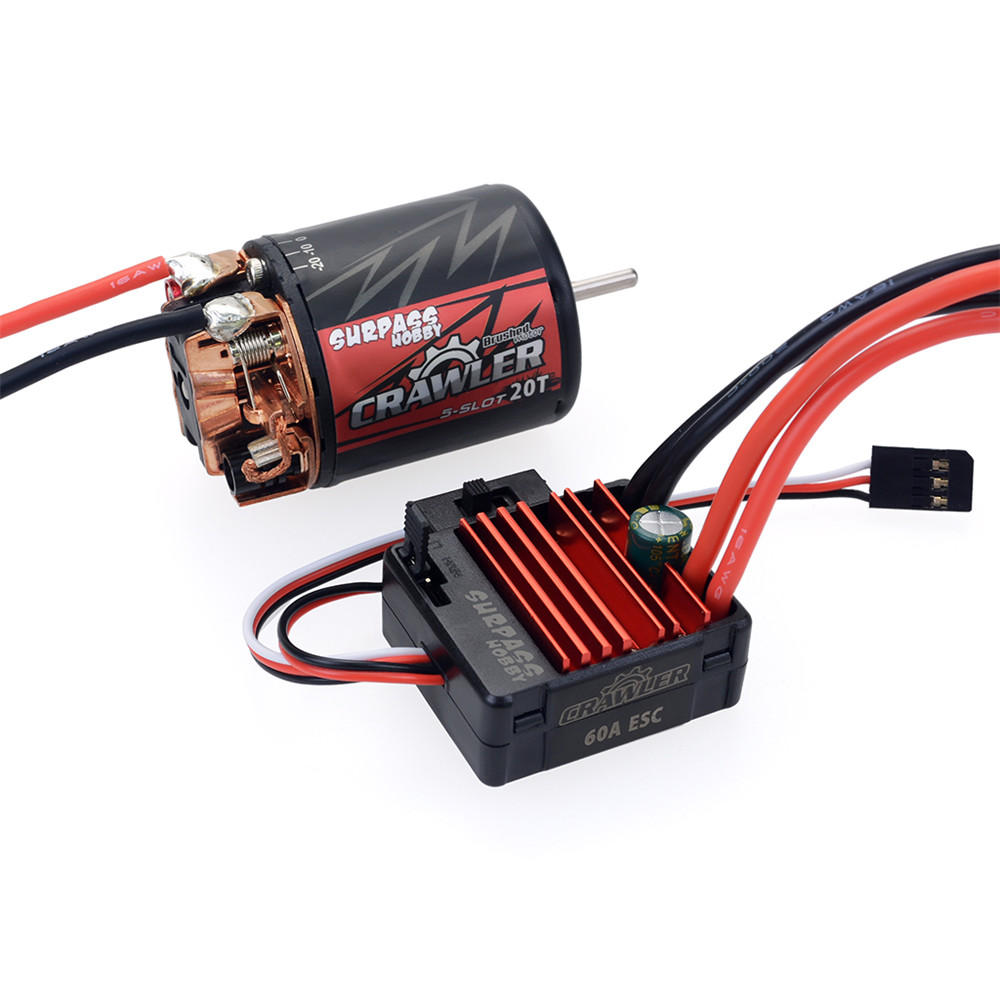

SURPASS Hobby Brush 540 20T RC Car Motor+60A ESC For 1/10 Crawler
1
Direct purchase from the factory
ຮັບປະກັນຄວາມປອດໄພໃນການຊຳລະ
ຂອງຂວັນຟຣີ
ນະໂຍບາຍການຈັດສົ່ງ
ນະໂຍບາຍການຄືນຂອງຂວັນຟຣີ
ຍິນດີຕ້ອນຮັບສູ່ Roymall, ເວັບໄຊທ໌ມືອາຊີບຂອງທ່ານສຳລັບການຊື້ຂອງຂວັນຫ້າງສັງຄົມຊັ້ນສູງ. ພວກເຮົາໃຫ້ຄ່າສູງ ແລະ ຂອບໃຈການສະໜັບສະໜູນຂອງທ່ານ, ແລະ ພວກເຮົາຕ້ອງການສະແດງຄວາມຂອບໃຈໂດຍການເພີ່ມຄວາມຕື່ນເຕັ້ນເພີ່ມເຕີມໃຫ້ກັບການຊື້ຂອງທ່ານ. ເມື່ອທ່ານຊື້ກັບພວກເຮົາ, ທ່ານບໍ່ພຽງແຕ່ໄດ້ຮັບຜະລິດຕະພັນຄຸນນະພາບສູງທີ່ຊ່ວຍປັບປຸງຊີວິດການເປັນຢູ່ຂອງທ່ານ, ແຕ່ທ່ານຍັງຈະໄດ້ຮັບຂອງຂວັນຟຣີທີ່ເປັນເອກະລັກກັບທຸກຄຳສັ່ງທີ່ທ່ານວາງ. ພ້ອມທີ່ຈະສຳຫຼວດຄວາມຄັກແລະຊອກຫາຂອງຂວັນທີ່ເຫມາະສົມທີ່ສຸດຂອງທ່ານບໍ? ສຳຫຼວດການເລືອກຂອງພວກເຮົາຂອງຜະລິດຕະພັນຫ້າງສັງຄົມຊັ້ນສູງ, ວາງຄຳສັ່ງຂອງທ່ານ, ແລະ ລໍຖ້າຄວາມຕື່ນເຕັ້ນຂອງຂອງຂວັນຟຣີຂອງທ່ານທີ່ຈະມາພ້ອມກັບການຊື້ຂອງທ່ານ.ນະໂຍບາຍການຈັດສົ່ງ
ພວກເຮົາຈະພະຍາຍາມຈັດສົ່ງສິນຄ້າໃຫ້ທ່ານຫຼັງຈາກໄດ້ຮັບຄຳສັ່ງຂອງທ່ານ ແລະ ໃຫ້ແນ່ໃຈວ່າພວກມັນຈະມາຮອດຢ່າງປອດໄພ. ລາຍລະອຽດການຈັດສົ່ງຈະຖືກລະບຸໃນອີເມວຢືນຢັນຂອງທ່ານ.ໃນສ່ວນໃຫຍ່, ຄຳສັ່ງຈະຖືກດຳເນີນການພາຍໃນ 2 ວັນ.ໃນສະຖານະການພິເສດ, ມັນຈະຖືກລັອກຄືດັ່ງນີ້: ເມື່ອທ່ານວາງຄຳສັ່ງໃນວັນເສົາ, ວັນອາທິດ ຫຼື ວັນພັກລັດຖະການ, ມັນຈະຖືກລັອກຄື 2 ວັນ..ປົກກະຕິ, ມັນຕ້ອງການ 5-7 ວັນເຮັດວຽກ (ຈັນຫາສຸກ) ໂດຍບໍ່ຖືກຜົນກະທົບຈາກການລັອກຂອງການບິນຫຼື ປັດໄຈສະພາບແວດລ້ອມອື່ນໆ..ເນື່ອງຈາກບໍລິການຈັດສົ່ງຂອງພວກເຮົາແມ່ນທົ່ວໂລກ, ເວລາຈັດສົ່ງຈະຂຶ້ນກັບສະຖານທີ່ຂອງທ່ານ, ສະນັ້ນມັນອາດຈະຕ້ອງໃຊ້ເວລາບາງຄັ້ງ ແລະ ກະລຸນາລໍຖ້າຢ່າງອົດທົນຖ້າທ່ານຢູ່ໃນເຂດຫ່າງໄກສອກຫຼີກ ຫຼື ປະເທດ.1. ນະໂຍບາຍການຄືນ & ແລກ
ພວກເຮົາຍອມຮັບສິນຄ້າທີ່ຊື້ຈາກ roymall.com ເທົ່ານັ້ນ. ຖ້າທ່ານຊື້ຈາກຕົວແຈກຢາຍທ້ອງຖິ່ນຂອງພວກເຮົາຫຼື ຮ້ານຄ້າອື່ນໆ, ທ່ານບໍ່ສາມາດຄືນມັນທີ່ພວກເຮົາໄດ້. ສິນຄ້າຂາຍສຸດທ້າຍຫຼື ຂອງຂວັນຟຣີບໍ່ສາມາດຍອມຮັບສຳລັບການຄືນ. ເພື່ອມີສິດໄດ້ຮັບການຄືນ, ສິນຄ້າຂອງທ່ານຕ້ອງບໍ່ເຄີຍໃຊ້ ແລະ ຢູ່ໃນສະພາບດຽວກັນກັບທີ່ທ່ານໄດ້ຮັບມັນ. ມັນຕ້ອງຢູ່ໃນບັລບັ້ງດັ້ງເດີມ.ຫຼັງຈາກໄດ້ຮັບຄຳແນະນຳການຄືນຈາກພວກເຮົາ, ກະລຸນາຫຸ້ມຫໍ່ສິນຄ້າທີ່ຈະຄືນຂອງທ່ານ ແລະ ສົ່ງແພັກເກົ່າຂອງທ່ານທີ່ຫ້ອງການໄປສະນີທ້ອງຖິ່ນຫຼື ຜູ້ຈັດສົ່ງອື່ນ.ພວກເຮົາຈະດຳເນີນການຄືນຫຼື ແລກສິນຄ້າພາຍໃນ 3-5 ວັນເຮັດວຽກຫຼັງຈາກພວກເຮົາໄດ້ຮັບມັນ. ການຄືນເງິນຈະຖືກດຳເນີນການ ແລະ ເຊື່ອມໂຍງໂດຍອັດຕະໂນມັດໄປຍັງວິທີການຊຳລະເງິນດັ້ງເດີມຂອງທ່ານ.ບໍ່ສາມາດຍອມຮັບການຄືນຫຼື ແລກຖ້າສິນຄ້າຖືກຜະລິດແບບປັບແຕ່ງ, ລວມທັງຂະໜາດປັບແຕ່ງ, ສີປັບແຕ່ງ, ຫຼື ການພິມປັບແຕ່ງ.ຕ້ອງການຄວາມຊ່ວຍເຫຼືອເພີ່ມເຕີມ, ກະລຸນາຕິດຕໍ່ພວກເຮົາ. service@roymall.com ຫຼື Whatsapp: +8619359849471
2.ນະໂຍບາຍການຄືນເງິນ
ທ່ານຈະໄດ້ຮັບເງິນຄືນເຕັມຈຳນວນ ຫຼື ເງິນຄັງ 100% ຫຼັງຈາກພວກເຮົາໄດ້ຮັບແພັກເກົ່າທີ່ຄືນ ແລະ ກວດສອບມັນ. ການຄືນເງິນຈະຖືກດຳເນີນການ ແລະ ເຊື່ອມໂຍງໂດຍອັດຕະໂນມັດໄປຍັງວິທີການຊຳລະເງິນດັ້ງເດີມຂອງທ່ານ. ກະລຸນາສັງເກດວ່າຄ່າໃຊ້ຈ່າຍໃນການຈັດສົ່ງ ແລະ ຄ່າທຳນຽມຫຼື ຄ່າທຳນຽມໃດໆບໍ່ສາມາດຄືນໄດ້. ຄ່າໃຊ້ຈ່າຍໃນການຈັດສົ່ງເພີ່ມເຕີມບໍ່ສາມາດຄືນໄດ້ເມື່ອແພັກເກົ່າໄດ້ຖືກຈັດສົ່ງແລ້ວ. ທ່ານແມ່ນຜູ້ຮັບຜິດຊອບໃນການຊຳລະຄ່າໃຊ້ຈ່າຍເຫຼົ່ານີ້ ແລະ ພວກເຮົາບໍ່ສາມາດຍົກເວັ້ນຫຼື ຄືນມັນ, ເຖິງແມ່ນວ່າຄຳສັ່ງຈະຖືກສົ່ງຄືນມາຫາພວກເຮົາ.ຫຼັງຈາກພວກເຮົາໄດ້ຮັບ ແລະ ຢືນຢັນສິນຄ້າທີ່ຄືນຂອງທ່ານ, ພວກເຮົາຈະສົ່ງອີເມວໃຫ້ທ່ານເພື່ອແຈ້ງໃຫ້ທ່ານຮູ້ວ່າພວກເຮົາໄດ້ຮັບສິນຄ້າທີ່ຄືນຂອງທ່ານ. ພວກເຮົາຍັງຈະແຈ້ງໃຫ້ທ່ານຮູ້ກ່ຽວກັບການອະນຸມັດຫຼື ປະຕິເສດການຄືນເງິນຂອງທ່ານ.ຖ້າທ່ານມີບັນຫາໃດໆກ່ຽວກັບຂະບວນການຄືນເງິນ, ກະລຸນາຕິດຕໍ່ພວກເຮົາ. service@roymall.com ຫຼື Whatsapp: +8619359849471
DECLARATION

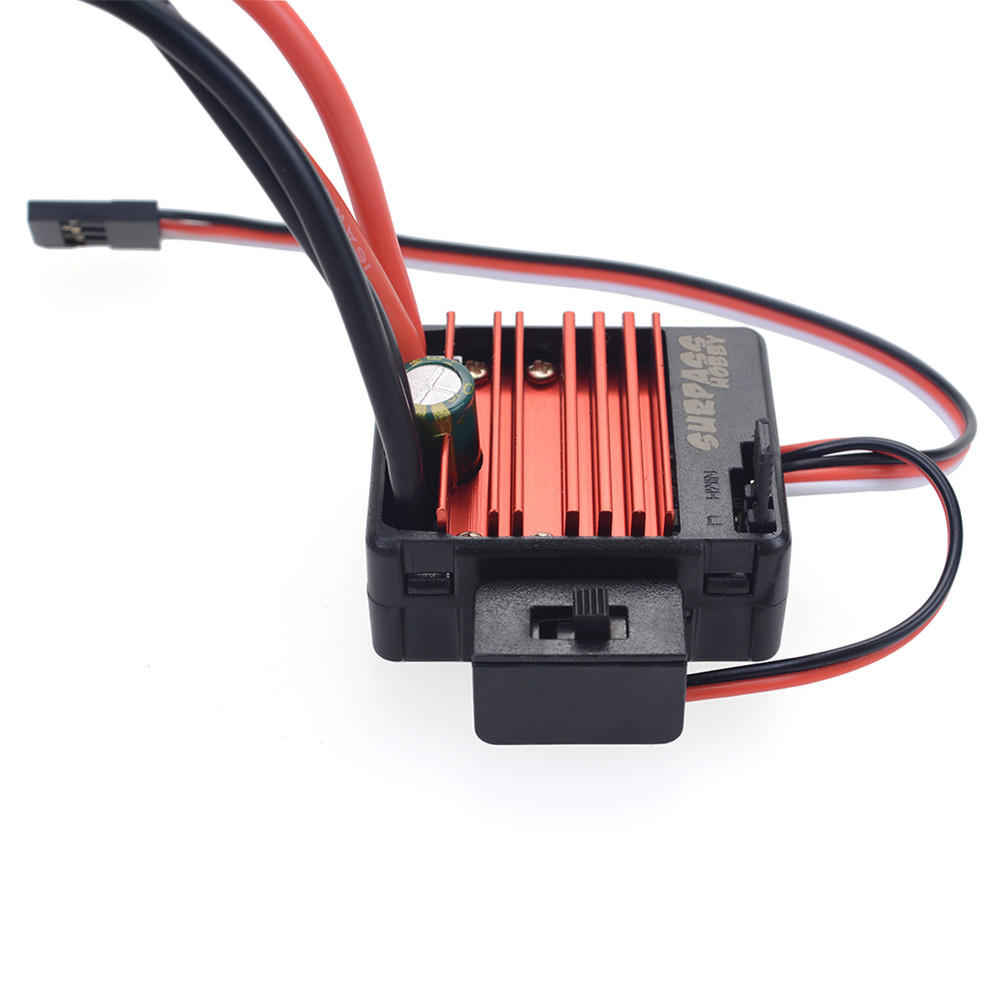

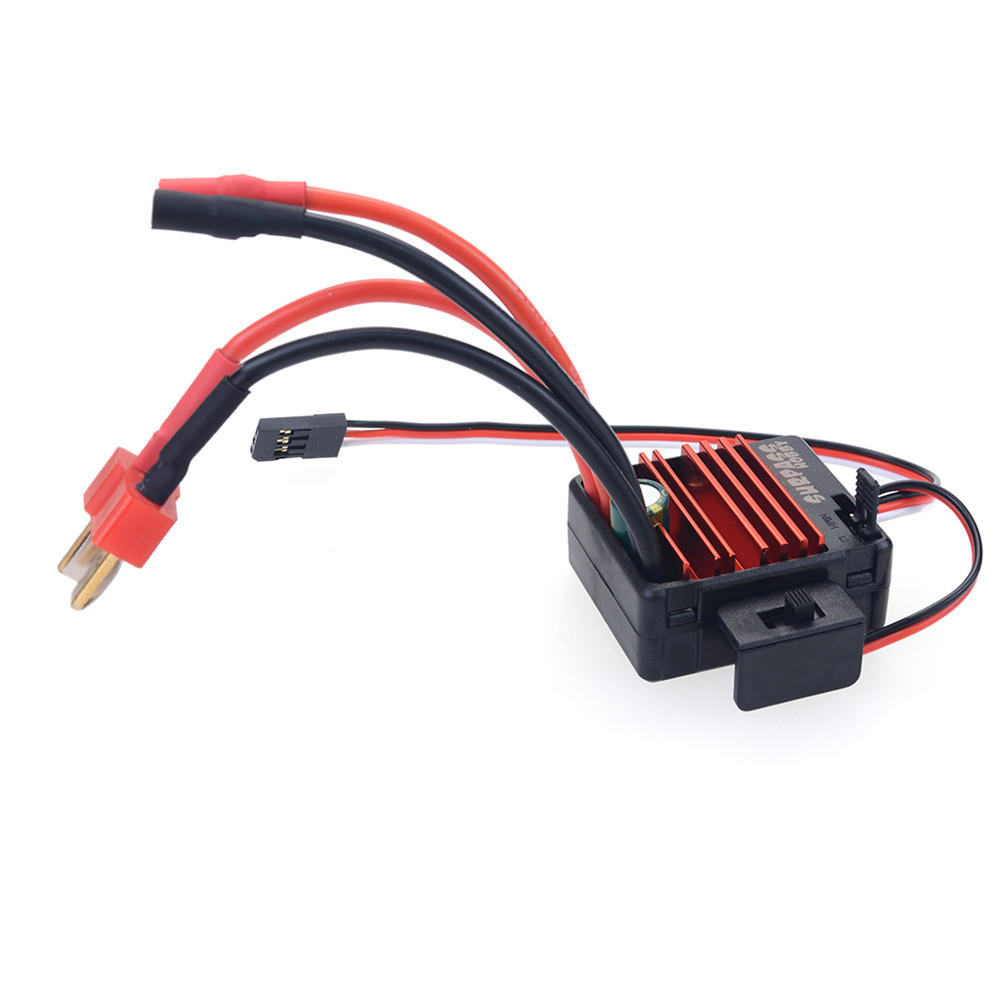

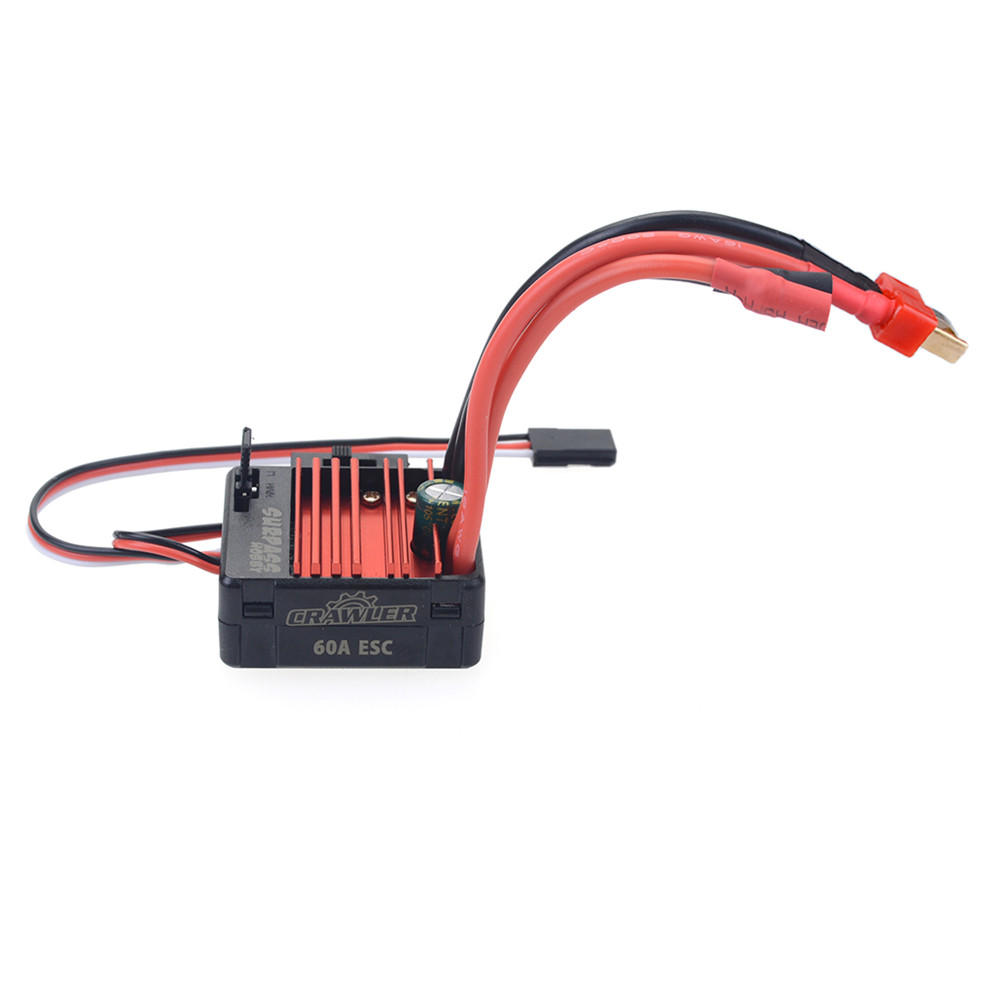

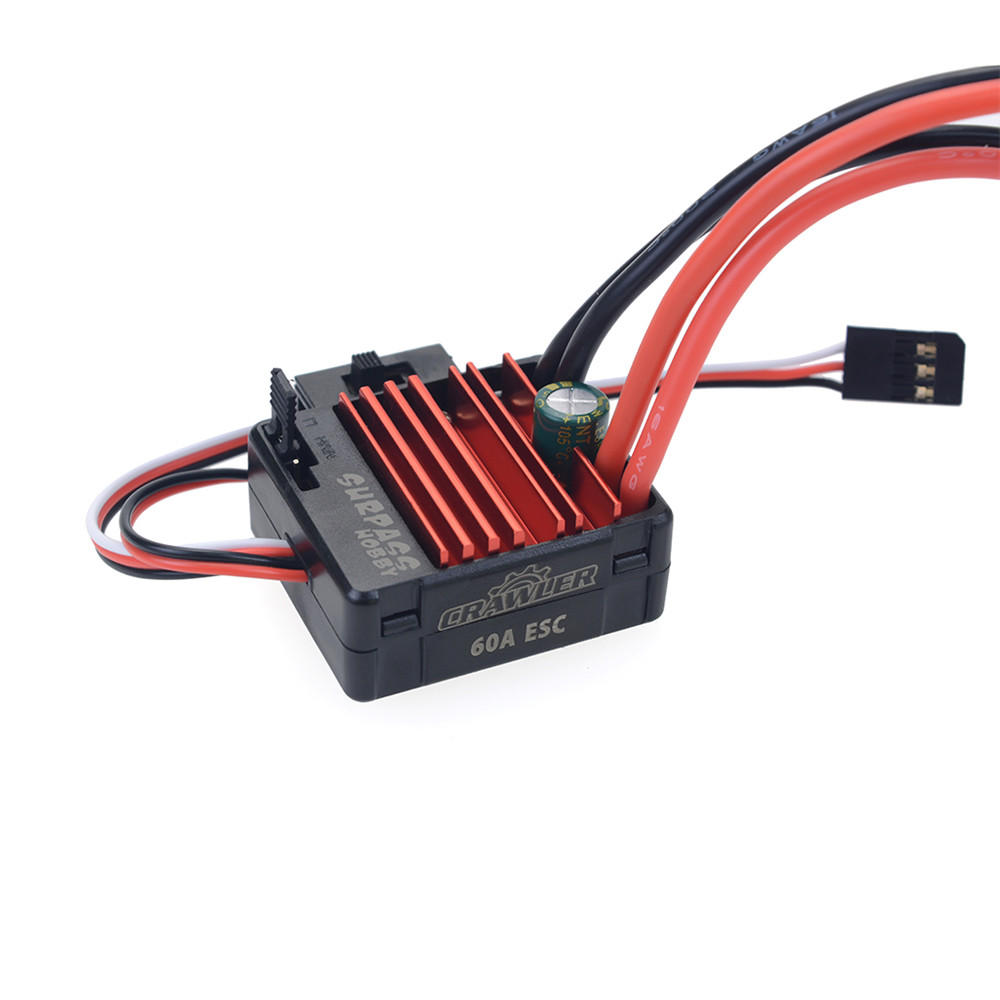

This is Electronic Speed Controller (ESC) for Crawler Brushed. High power system for RC model is very dangerous, so please read this manual carefully. Since we can’t control over the correct use, installation, application, or maintenance of our products, we’ve no liability shall be assumed nor accepted for any damages, losses or costs resulting from the use of the product. Any claims arising from the operating, failure of malfunctioning etc. will be denied. We assume no liability for personal injury, consequential damages resulting from our product or our workmanship.
FEATURES
1. Specially designed for RC Crawler Brushed car with excellent throttle linearity and driving feel.
2. Compatible with brush motor.
3. The strong resistant current capability, excellent heat dissipation.
4. Multiple protection features: Low voltage cut-off protection for lithium or nickel battery / Over-heat protection / Throttle signal loss protection /
5. Easily programmed and compatible with pocket-sized program card.
Specifications
1. Cont. Current/ Burst Current:60A/320A.
2. Resistance:0.0014ohm
3. Motor Type: brush motor.
4. Suitable Car:1/10 Crawler Brushed.
5. Battery:2~3 cells Lipo,4~9 cells NiMH.
6. BEC:6V/2A (switch mode).
7. Dimension:32mm*37mm*18mm
Instuctions
1. Connect BEC wires with the receiver
2. Connect motor wires with ESC
3. Turn on the transmitter
4. Connect battery pack with ESC then switch on the ESC.
5. When the connection of motor and battery is finished, the motor emits “Beep” tone.
6. When the throttle stick is in the neutral position, the motor re-emits “Beep” tone.
7. The ESC is workable.
Troubleshooting
1. If after power on, motor can’t work, no sound is emitted, please check the connections between battery pack and motor.
2. If the motor emits a “Beep” tone Only, please check all the connections: BEC wires, transmitter and receiver, throttle signal wires, etc. please check the transmitter TH.TRIM and adjust it to the motor re-emits “Beep” tone.
3. If the car can’t be speed up, please check either voltage of the battery pack is too low or the temperature of ESC is too high. If the voltage of the battery pack is too low, please replace the battery pack. If the temperature of ESC is too high, please check all connections. If not, please push the button EPA on your remote control.
4. If the car stops suddenly while in working state, please check the motor’s connections, and the roadblock.
5. If the car runs in the opposite direction, which the transmitter is available, please swap two wire connections between the ESC and the motor.
Set the ESC
ESC uses the jumper cap to set battery type.
1.Initial Start Force:5%,13%,21%,32%(default value 5%)
2.Low Voltage Cut-Off: The function is mainly to prevent the lithium battery pack from over discharging. When using lithium battery pack, please set the suitable v alue for low-voltage protection as your like. WARNING: Never use the default value “Non-protection” for lithium battery! 3.1V,3.3V,2.9V
(default value 3.1V)
3.Drag Brake Force: 100%,90%,80%,70%(default value 100%)
4.Maximum Reverse Force: 95%,75%,50%(default value 95%
5.3 Start Modes (Also called “Punch”) from “soft” to “very aggressive” (default value Medium)
programme card Method:
1. Connect BEC wires with the program car then turn on the ESC.
2. The Green LED flashes for 2 times then LED off, that is, the connecting program car with ESC is successful, and the Red LED on presents the current value of that item. Otherwise, the connecting is failed.
3. Please press the Key “↓” to select different programs
4. Please press the Key “→” to select different value of the current program
5. Please press the Key “Program” to confirm above selections, the Green LED on immediately and has gone out within 5 seconds, that is, this process is successful.
6. Please press the Key “Reset” to reset the factory setting.
This set can use this program card(click).
Package list:
1x motor
1x esc
